Wet press molded fibre is a production method where pulp forming and drying occur simultaneously inside a heated press die, producing thin-walled (0.8–2 mm), high-density packaging with smooth surface finish suitable for premium non-food applications including cosmetics, fragrance, consumer electronics, and wine secondary packaging. The process delivers finer surface detail and better printability than dry press methods, with tooling costs typically ranging €5,000–20,000 per cavity set and cycle times of 60–80 seconds per part under controlled production conditions.
Wet press molded fibre production uses a compact manufacturing line where forming, pressing, and dewatering happen together in a single heated die assembly. The process begins with recycled paper pulp dispersed in water, which forms a slurry deposited onto a forming screen shaped to the product geometry. Once the pulp pre-form is created with approximately 85–90% water content, it transfers directly into a heated press die operating at 160–220°C under pressure of 20–60 bar.
Inside the heated die, three simultaneous processes occur: mechanical compression shapes the final geometry, heat evaporates water content, and pressure consolidates fibres into a dense structure. The press duration ranges 15–45 seconds depending on wall thickness and part geometry. Steam escapes through vents designed into the die, and the finished part exits at approximately 3–5% moisture content ready for quality inspection and finishing operations.
This integrated approach differs fundamentally from dry press molded fibre production, where forming and drying are separate stages. Dry press systems use a long continuous line with a drying oven followed by a separate heated press. The wet press configuration eliminates the oven stage, reducing production-line footprint and enabling tighter control over surface finish because the heated die contacts the pulp throughout the entire dewatering process.
The result is packaging with thinner walls (0.8–2 mm compared to dry press 2–5 mm), higher density, and smoother surface texture. Wall thickness uniformity depends on die design and pulp distribution—typical tolerances are ±0.3 mm for walls under 2 mm thickness. Draft angles of 3–7° support part ejection from the die without surface damage.
Wet press molded fibre achieves basis weights between 400–1,200 g/m², with compression strength ranging 200–400 N per 100 mm² depending on fibre source and processing parameters. The smooth surface created by heated-die contact enables direct printing, embossing, and colour coating with finer detail than rough-textured dry press alternatives.
| Parameter | Wet press molded fibre | Dry press molded fibre | Plastic injection moulding |
|---|---|---|---|
| Wall thickness | 0.8–2 mm | 2–5 mm | 0.5–3 mm |
| Surface finish | Smooth, printable | Rough, textured | Very smooth |
| Density | 0.3–0.8 g/cm³ | 0.3–0.8 g/cm³ | 0.9–1.2 g/cm³ |
| Tooling cost | €5,000–20,000 | €5,000–20,000 | €8,000–25,000 |
| Cycle time | 8–20 s | 3–8 s (forming only) | 20–60 s |
| Production line footprint | Compact (no oven) | Long (includes oven) | Compact |
| Material recyclability (EU) | Paper stream (≥70% target 2030) | Paper stream (≥70% target 2030) | Plastic stream (varies by polymer) |
| Typical applications | Premium packaging, cosmetics, electronics | Protective packaging, industrial components | High-volume consumer goods |
Wet press delivers surface quality closer to plastic moulding than dry press alternatives, making it suitable for applications where branding, print quality, and visual presentation drive procurement decisions. The compact production footprint reduces capital equipment costs compared to dry press lines, though cycle times are longer because forming and drying happen simultaneously rather than in parallel stages.
Procurement teams evaluating wet press molded fibre for non-food packaging face three primary decision factors: application requirements, volume economics, and regulatory alignment.
Application requirements determine technology suitability. Premium cosmetics packaging, fragrance boxes, consumer electronics inserts, and wine secondary packaging benefit from wet press smooth surface finish, enabling direct offset printing, hot foiling, and embossed branding without secondary coating operations. Products requiring thin-walled, lightweight construction with precise dimensional tolerances—such as smartphone accessory packaging or luxury skincare component trays—align with wet press capabilities. Conversely, applications prioritising impact absorption over surface finish (protective e-commerce packaging, appliance corner protectors) typically justify dry press selection.
Volume economics influence tooling investment decisions. TRIDAS minimum order quantity starts from 10,000 units, with cost-effectiveness varying by part complexity and tooling cavity count. Tooling lead time of approximately 4 weeks supports faster market entry compared to alternative molded fibre suppliers operating 4–8 week tooling cycles. Recycled paper pulp represents a substantially cheaper input than virgin polypropylene, improving economics at higher annual volumes, though production cycle times longer than plastic injection moulding (60–80 seconds versus 20–60 seconds for plastic) affect line efficiency calculations.
Regulatory alignment addresses Packaging and Packaging Waste Regulation (EU) 2025/40 requirements applying from 12 August 2026. Fibre-based packaging must achieve recyclability targets of at least 70% from 2030 and at least 80% from 2038 under PPWR Article 6. Wet press molded fibre qualifies under EN 643 paper grades for recycling stream compatibility. Buyers sourcing from forest-risk regions must verify EU Deforestation Regulation (EU) 2023/1115 compliance applying 30 December 2026—requiring Due Diligence Statements and geolocation data for pulp sourcing.
Colour consistency under ISO 12040 lightfastness testing and dimensional stability across production batches require controlled production parameters. Buyers should request ΔE colour deviation data (target under 2 for premium applications) and dimensional tolerance capability studies during supplier qualification.

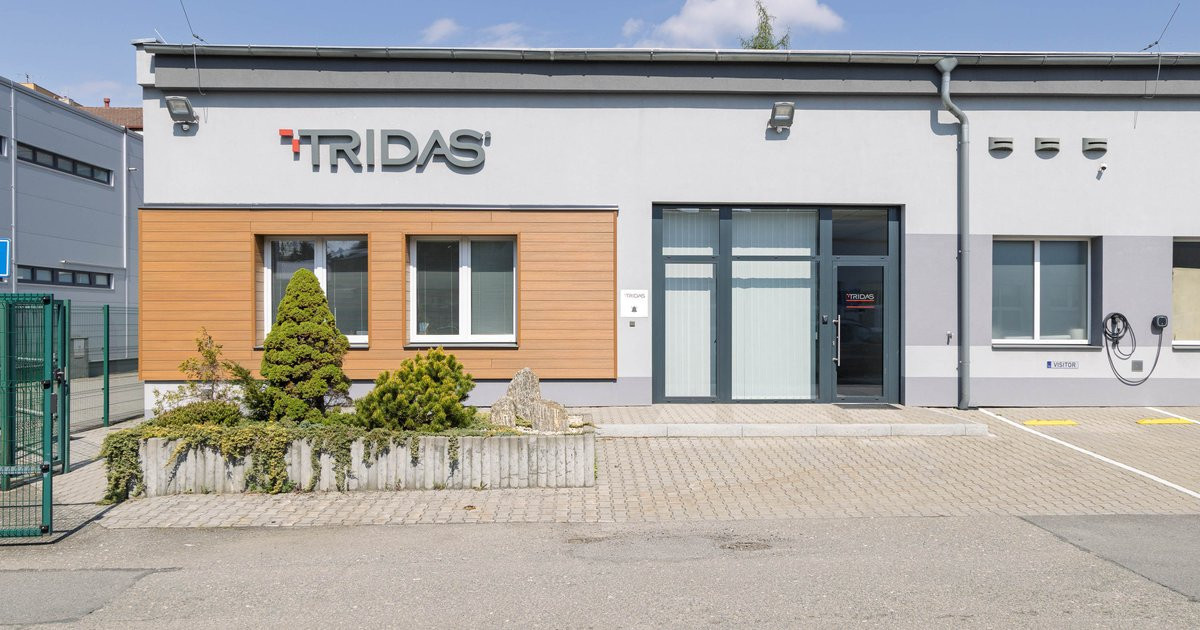

TRIDAS operates both wet press and dry press molded fibre production technologies under one roof at its Czech facility, enabling technology selection based on product specification rather than production constraint. The company designs and manufactures its own molded fibre production lines, supporting faster tooling modifications and process optimisation compared to suppliers reliant on third-party equipment. Tooling lead time of approximately 4 weeks from order—significantly faster than alternative molded fibre suppliers—reduces time-to-market for product launches. TRIDAS is FSC-certified and provides EUDR-compliant Due Diligence Statements per shipment under Regulation (EU) 2023/1115, sourcing pulp primarily from EU low-risk regions. Dedicated black molded fibre production lines launched in 2026 expand colour options beyond natural kraft for premium applications.
